Quick Details

  • Standard or Nonstandard: Standard
  • Structure: Ball
  • Pressure: Medium Pressure
  • Power: electric
  • Material: Brass or SS304
  • Temperature of Media: Medium Temperature
  • Media: Water
  • Port Size: 1/4" ~ 2
  • Place of Origin: Tianjin, China (Mainland)
  • Model Number: CWX15N/Q
  • Brand Name: CWX
  • Application: General
  • Rated Volotage: DC3-6V/AC/DC9-24V
  • Output torque: 1.5~6NM
  • Rated current: 45-100MA
  • Actuator rotation: 90/180 degree
  • Open/close time: 3-5seconds
  • Control mode: 2,3,5 wires(CR01/02/03/04/05/06)
  • Low Working Current: 80mA~150mA
  • Enclosure: IP65

Packaging & Delivery

Packaging Details: box, carton
Delivery Detail: 3-5days

Electric ball valve features: excellent capacity of water stoppage, large water flow rate, zero dirt block, low torque, nice design and easy installation.



Description:



Valve Size:

BSP1/2"

Valve Material

SS304

Circulation Medium:

Water,Air

Max Working Pressure:

1.0Mpa

Liquid Temperature

0-90 degrees C

Work Volt:

DC24V

Max Torque:

1.5Nm

Rated Current:

45-100mA

Open/Close Time:

3-5seconds

Working Life:

100,000 Circles

Protection Class:

IP65

Valve Body Material:

SS304

Actuator Material:

Heat-resistant ABS

Sealing Material:

PTFE,silicon rubber ball seat,EPDM and NBR stem seat,NBR o-rings

Manual Override:

No

Actuator Rotation:

90 degrees C

Cable Length:

0.5m

Wiring Control Method:

CR01 CR02   CR03  CR04 CR05








Material:

  1. Valve Body:  Hpb58-3 and S304 ;
  2.  Valve Seal:  Stem:  EPDM with double O-ring ;
  3.  Ball:  PTFE+EPDM with double O-ring;
  4. Actuator enclosure:  PC+10GF;
  5.  Actuator revolving shaft:  POM;



Specifications:

  • Actuator motor: Reversible synchronous motor
  • Power supply: AC220V, AC110V, AC24V
  • Output torque: 1.5~6N.m
  • Power consumption:  <5W
  • Control way: on/off brass cwx15q 2way actuator Electric ball valves
  • Pipe connection: G/BSP/NPT
  • Media temperature range: 2°C~90°C
  • Ambient temperature: -5°C~60°C
  • Running time: 3-5S/50Hz, 3-5S/60Hz
  • Ambient humidity: <90%
  • Pressure grade:  PN16
  • Protect rank:  IP65  brass ss304 cwx15q 2way stainless steel electric ball valve
  • 20mm dn20 brass ss304 NPT BSP cwx-15 2 way electric actuated 304 stainles steel ball valve
  • brass ss304 NPT BSP cwx-15 2 way electric actuated stainless steel ball valve
  • AC85-265v dn32 brass Motorized large water valve dn25 dn20 ss304 brass CWX-15Q/N Electric ball valve price
  • brass CR01 5v Electric Ball Valve instead of solenoid valve
  • brass ss304 normally open CR04 220v water inlet Electric ball valve
  • dn8 dn10 brass 3s 5s Electric quick ball valve for irrigation
  • brass DC5V 12V 24V washing machine water inlet ball valve

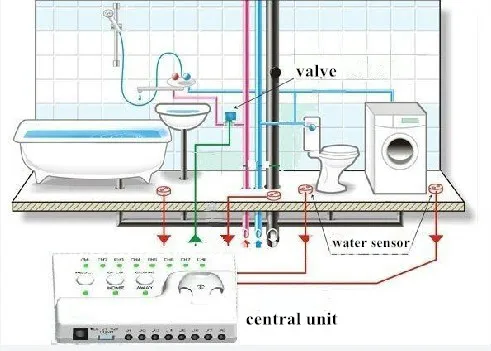

  • 12V 24V 220v brass electric water control valve with water leakage detector
  • dn15 dn20 brass ss304 NPT BSP cwx-15 2 way electric ball valve for water
  • ss304 stainless steel cwx15q 2way actuator electric ball valve
  • brass ss304 NPT BSP cwx 15q 2 way electric ball valve

Use Places

Commercial Residential





Residential



Sump Pit

Wall/Floor seams

 Storage rooms

 Restaurant



Washing Machine

 Window wells

Computer Equipment

rooms





Basement floor

Leaky drain pipes

Warehouses

Basement wall

Air conditioner

Floor drains

Kitchens

Banquet halls

Hot water heater

Cracks

floor seams



Dehumidifier

Concrete block joints
